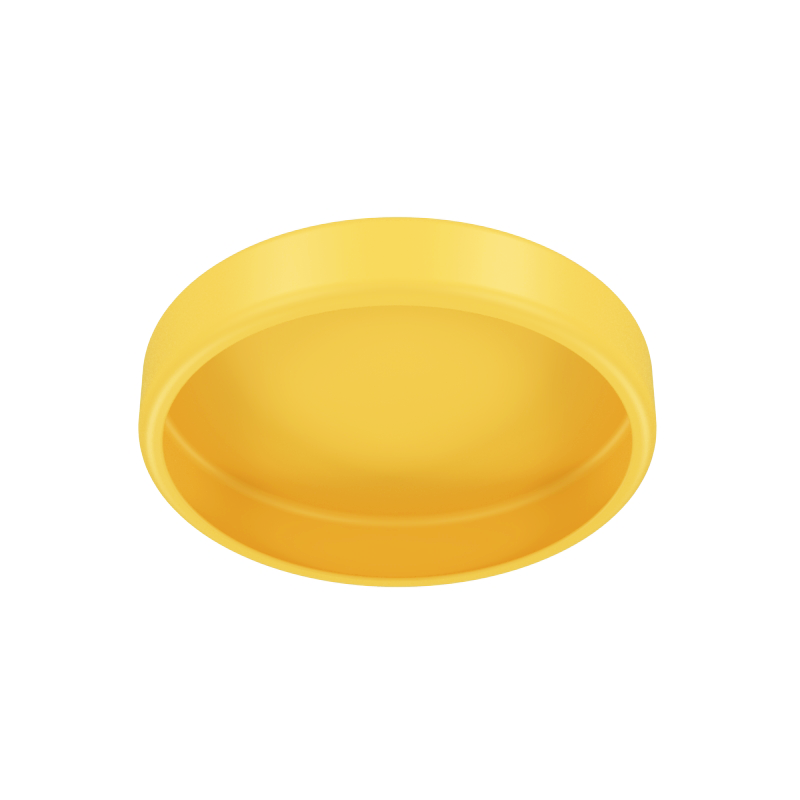

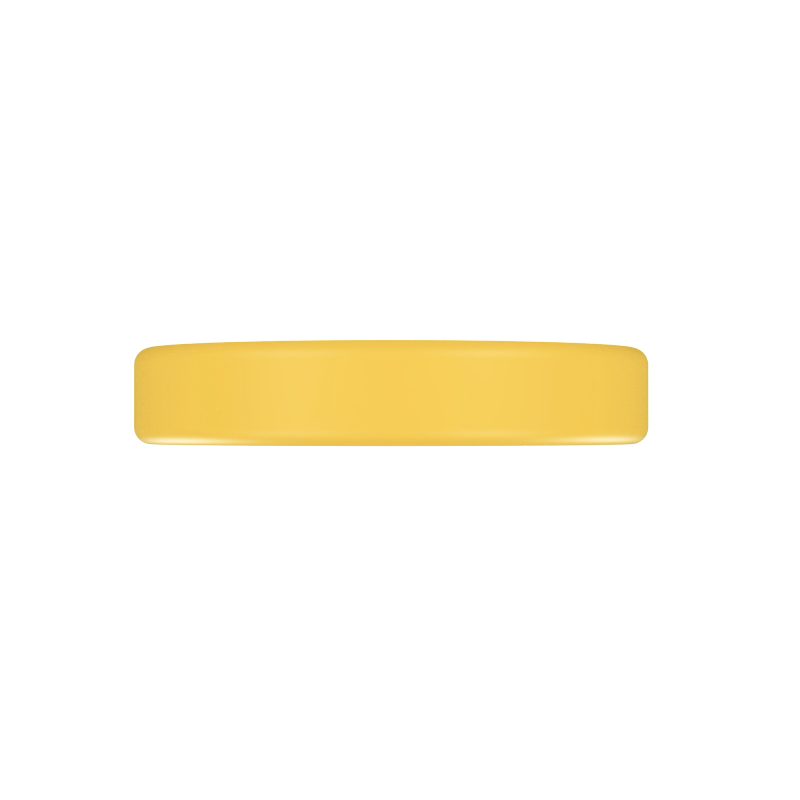

Calotta protezione flange

Codice serie: CAL
Materiale:
Polietilene (PE-LD)
Colore: Giallo

Stampa Scheda
Contattaci per maggiori informazioni o per richiedere campioni

    Serie Codice Evidenzia ظ nominale Pressioni (Bar) d h
    CAL CAL - ANSI 1
    CAL CAL1/2-150 0 1/2" 150 88.9 11.2
    CAL CAL1/2-346 0 1/2" 300/400/600 95.2 14.2
    CAL CAL1/2-915 0 1/2" 900/1500 120.6 22.3
    CAL CAL3/4-150 0 3/4" 150 98.6 12.7
    CAL CAL3/4-915 0 3/4" 900/1500 130 25.4
    CAL CAL3/4-346 0 3/4" 300/400/600 117.3 15.7
    CAL CAL1-150 0 1" 150 108 14.2
    CAL CAL1-346 0 1" 300/400/600 124 17.5
    CAL CAL1-915 0 1" 900/1500 149.3 28.4
    CAL CAL1.1/4-150 0 1.1/4" 150 117.3 15.7
    CAL CAL1.1/4-346 0 1.1/4" 300/400/600 133.4 19
    CAL CAL1.1/2-150 0 1.1/2" 150 127 17.5
    CAL CAL1.1/2-300 0 1.1/2" 300 155.4 20.6
    CAL CAL1.1/2-46 0 1.1/2" 400/600 155.4 22.4
    CAL CAL1.1/2-915 0 1.1/2" 900/1500 177.8 31.7
    CAL CAL2-150 0 2" 150 152.4 19.1
    CAL CAL2-300 0 2" 300 165.1 22.5
    CAL CAL2-46 0 2" 400/600 165.1 25.4
    CAL CAL2-915 0 2" 900/1500 215.9 38.1
    CAL CAL2.1/2-150 0 2.1/2" 150 177.8 22.4
    CAL CAL2.1/2-300 0 2.1/2" 300 190.5 25.4
    CAL CAL2.1/2-46 0 2.1/2" 400/600 190.5 28.4
    CAL CAL3-150 0 3" 150 190.5 23.9
    CAL CAL3-300 0 3" 300 209.5 28.4
    CAL CAL3-46 0 3" 400/600 209.5 31.8
    CAL CAL3-900 0 3" 900 241.3 38.1
    CAL CAL3.1/2-150 0 3.1/2" 150 215.9 23.9
    CAL CAL3.1/2-300 0 3.1/2" 300 228 30.2
    CAL CAL3.1/2-46 0 3.1/2" 400/600 228.6 35.1
    CAL CAL4-150 0 4" 150 228.6 23.9
    CAL CAL4-300 0 4" 300 254 31.7
    CAL CAL4-600 0 4" 600 273.1 38.1
    CAL CAL5-150 0 5" 150 254 23.9
    CAL CAL5-300 0 5" 300 279.4 35
    CAL CAL5-600 0 5" 600 330.2 44.5
    CAL CAL6-150 0 6" 150 279.4 25.4
    CAL CAL6-300 0 6" 300 317.5 36.5
    CAL CAL6-600 0 6" 600 355.6 47.8
    CAL CAL8-150 0 8" 150 342.9 28.4
    CAL CAL8-300 0 8" 300 381 41.1
    CAL CAL8-600 0 8" 600 419.1 55.6
    CAL CAL10-150 0 10" 150 406.4 30.2
    CAL CAL10-300 0 10" 300 444.5 47.7
    CAL CAL10-600 0 10" 600 508 63.5
    CAL CAL12-150 0 12" 150 482.6 31.8
    CAL CAL12-300 0 12" 300 520.7 50.8
    CAL CAL12-600 0 12" 600 558.8 66.5
    CAL CAL14-150 0 14" 150 533.4 35.1
    CAL CAL14-300 0 14" 300 584.2 53.8
    CAL CAL14-600 0 14" 600 603.3 69.9
    CAL CAL16-150 0 16" 150 596.9 36.6
    CAL CAL16-300 0 16" 300 647.7 57.1
    CAL CAL16-600 0 16" 600 685.8 76.2
    CAL CAL18-150 0 18" 150 635 39.6
    CAL CAL18-300 0 18" 300 711.2 60.4
    CAL CAL18-600 0 18" 600 743 82.6
    CAL CAL20-150 0 20" 150 698.5 42.9
    CAL CAL20-300 0 20" 300 774.7 63.5
    CAL CAL20-600 0 20" 600 812.8 88.9
    CAL CAL22-150 0 22" 150 749.3 46
    CAL CAL24-150 0 24" 150 812.8 47.8
    CAL CAL24-300 0 24" 300 914.4 69.8
    CAL CAL24-600 0 24" 600 939.8 101.6
    CAL CAL - DIN 1
    CAL CAL10/6 0 DN 10 6 75 10
    CAL CAL10/10/16 0 DN 10 10, 16 90
    CAL CAL10/25/40 0 DN 10 25, 40 90 14
    CAL CAL15/6 0 DN 15 6 80 10
    CAL CAL15/10/16 0 DN 15 10, 16 95 12
    CAL CAL15/10/16B 0 DN 15 10, 16 105 14
    CAL CAL15/25/40 0 DN 15 25, 40 95.2 14.2
    CAL CAL20/6 0 DN20 6 90 12
    CAL CAL20/10/16 0 DN20 10, 16 105 14
    CAL CAL20/25/40 0 DN20 25, 40 105 16
    CAL CAL25/6 0 DN25 6 100.2 12.2
    CAL CAL25/10/16 0 DN25 10, 16 115 14
    CAL CAL25/25/40 0 DN25 25, 40 115 16
    CAL CAL32/6 0 DN 32 6 120 12
    CAL CAL32/10/16 0 DN 32 10, 16 140 14
    CAL CAL32/25/40 0 DN 32 25, 40 140 16
    CAL CAL40/6 0 DN 40 6 130 11
    CAL CAL40/10/16 0 DN 40 10, 16 150 13
    CAL CAL40/25/40 0 DN 40 25, 40 150.5 15
    CAL CAL50/6 0 DN 50 6 140 11
    CAL CAL50/10/16 0 DN 50 10, 16 165 15
    CAL CAL50/25/40 0 DN 50 25, 40 165 17
    CAL CAL65/6 0 DN 65 6 160 11
    CAL CAL65/10/16 0 DN 65 10, 16 185 15
    CAL CAL65/25/40 0 DN 65 25, 40 185 19
    CAL CAL80/6 0 DN 80 6 190 13
    CAL CAL80/10/16 0 DN 80 10, 16 200 17
    CAL CAL80/25/40 0 DN 80 25, 40 200 21
    CAL CAL100/6 0 DN 100 6 210 13
    CAL CAL100/10/16 0 DN 100 10, 16 220 17
    CAL CAL100/25/40 0 DN 100 25, 40 235 21
    CAL CAL125/6 0 DN 125 6 240 15
    CAL CAL125/10/16 0 DN 125 10, 16 250 19
    CAL CAL125/25/40 0 DN 125 25, 40 270 23
    CAL CAL150/6 0 DN 150 6 265 15
    CAL CAL150/10/16 0 DN 150 10, 16 285 19
    CAL CAL150/25/40 0 DN 150 25, 40 300 25
    CAL CAL200/6 0 DN 200 6 320 17
    CAL CAL200/10/16 0 DN 200 10, 16 340 21
    CAL CAL200/25 0 DN 200 25 360 27
    CAL CAL200/40 0 DN 200 40 375 31
    CAL CAL250/6 0 DN 250 6 375 19
    CAL CAL250/10 0 DN 250 10 395 23
    CAL CAL250/16 0 DN 250 16 405 23
    CAL CAL250/25 0 DN 250 25 425 29
    CAL CAL250/40 0 DN 250 40 450 35
    CAL CAL300/6 0 DN 300 6 440 18
    CAL CAL300/10 0 DN 300 10 445 22
    CAL CAL300/16 0 DN 300 16 460 24
    CAL CAL300/40 0 DN 300 40 515 38
    CAL CAL350/6 0 DN 350 6 490 18
    CAL CAL350/10 0 DN 350 10 505 22
    CAL CAL350/16 0 DN 350 16 520 26
    CAL CAL350/25 0 DN 350 25 555 34
    CAL CAL400/6 0 DN 400 6 540 18
    CAL CAL400/10 0 DN 400 10 565 22
    CAL CAL400/16 0 DN 400 16 580 28
    CAL CAL400/25 0 DN 400 25 620 36
    CAL CAL400/40 0 DN 400 40 660 46
    CAL CAL500/10 0 DN 500 10 670 24
    CAL CAL500/16 0 DN 500 16 715 30
    CAL CAL500/25 0 DN 500 25 730 40
    CAL CAL500/40 0 DN 500 40 755 48
